A319NEO DIMENSIONS + PERFORMANCE

Wing span
Length
Width
Height
Cabin Length
Cabin Width
Cabin Height
Cabin Area

35.8m
33.8m
3.95m
11.8m
24m
3.7m
2.25m
83m

117' 5"
111'
12' 10"
38' 7"
79'
12' 2"
7' 5"
893'

Take Off Weight
Landing Weight
Zero Fuel Weight
Empty Weight
Payload
Fuel Capacity
Fuel Burn
Range
Flight Time
Cruise Speed
Cruise Ceiling
Take-off Distance
Landing Distance

78'200kg
63'900kg
53'000kg
39'400kg
13'600kg
40'990l
2572lp/h
12'500km
15:00hrs
829km/h
12'496m
1'840m
670m

170'417lb
140'875lb
116'845lb
86'862lb
28'882lb
10'828gal
679gp/h
6'750nm
900min
515mp/h
41'000ft
6'036ft
2'200ft

A319NEO CARGO CONFIGURATION

Aux.
Fuel
Tanks
6
5
4
3
2
1
0

Flight
Time
Hours
15:00
13:55
12:45
12:00
11:05
10:00
8:55

Fuel
Capacity
Litres (US.Gal)
40'990 (10'828)
37'889 (10'003)
34'823 (9'199)
32'637 (8'621)
30'193 (7'976)
27'201 (7'185)
24'209 (6'395)

Cargo
Capacity
cu/m (cu/ft)
3.96 (140)
7.91 (279)
11.86 (418)
15.81 (558)
19.76 (697)
23.71 (837)
27.66 (976)

Data provided for information only, actual range and distances specific to aircraft configuration and customer operations.

A320NEO DIMENSIONS + PERFORMANCE

Wing span
Length
Width
Height
Cabin length
Cabin width
Cabin height
Cabin Area

35.8m
37.6m
3.95m
11.8m
27.7m
3.7m
2.25m
96m

117' 5"
123' 3"
12' 10"
38' 7"
89' 10"
12' 2"
7' 5"
1003'

Take Off Weight
Landing Weight
Zero Fuel Weight
Empty Weight
Payload
Fuel Capacity
Fuel Burn
Range
Flight Time
Cruise Speed
Cruise Ceiling
Take-off Distance
Landing Distance

79'000kg
67'400kg
55'300kg
40'600kg
14'700kg
34'416l
2721lp/h
11'100km
13:20hrs
829km/h
12'496m
2'110m
732m

174'165lb
148'592lb
121'915lb
89'507lb
32'407lb
9'091gal
719gp/h
6'000nm
800min
515mp/h
41'000ft
6'920ft
2'400ft

A320NEO CARGO CONFIGURATION

Aux.
Fuel
Tanks
4
3
2
1
0

Flight
Time
Hours
13:20
12:30
11:40
10:30
9:10

Fuel
Capacity
Litres (US.Gal)
34'416 (9'091)
32'208 (8'508)
30'000 (7'925)
26'862 (7'096)
23'724 (6'267)

Cargo
Capacity
cu/m (cu/ft)
23.43 (827)
26.92 (950)
30.42 (1'074)
33.92 (1'198)
37.42 (1'322)

Data provided for information only, actual range and distances specific to aircraft configuration and customer operations.

A321NEO DIMENSIONS + PERFORMANCE

Wing span
Length
Width
Height
Cabin length
Cabin width
Cabin height
Cabin Area

35.8m
44.5m
3.95m
11.8m
34.7m
3.7m
2.25m
128m

117' 5"
146'
12' 10"
38' 7"
113'
12' 2"
7' 5"
1337'

Take Off Weight
Landing Weight
Zero Fuel Weight
Empty Weight
Payload
Fuel Capacity
Fuel Burn
Range
Flight Time
Cruise Speed
Cruise Ceiling
Take-off Distance
Landing Distance

97'000kg
79'200kg
75'600kg
47'500kg
28'100kg
32'943l
3'214lp/h
8'501km
10:15hrs
829km/h
12'496m
2'341m
764m

213'848lb
174'606lb
166'669lb
104'719lb
48'060lb
8'702gal
849gp/h
4'590nm
615min
515mp/h
41'000ft
7'680ft
2'507ft

A321NEO CARGO CONFIGURATION

Aux.
Fuel
Tanks
3
2
1
0

Flight
Time
Hours
10:15
9:15
8:20
7:15

Fuel
Capacity
Litres (US.Gal)
32'943 (8'702)
29'822 (7'878)
26'701 (7'053)
23'530 (6'229)

Cargo
Capacity
cu/m (cu/ft)
41.22 (1'455)
44.72 (1'579)
48.22 (1'702)
51.72 (1'828)

Data provided for information only, actual range and distances specific to aircraft configuration and customer operations.

AIRBUS ACJ320 OPERATING COSTS

A319NEO VARIABLE COSTS

Maintenance
Parts (Airframe / Engine / APU)
Thrust Reverser Allowance
APU Allowance
Major Periodic Maintenance
Engine Reserves
Landing / Parking
Crew Expenses
Supplies / Catering
TOTAL COST PER HOUR

$380 - 850
$210 - 950
$20
$105 - 140
$900
$985 - 1100
$165 - 230
$330 - 360
$175 - 190
$6'595 - 8'065

A319NEO FIXED COSTS

Captain
First Officer
Second Officer
Cabin Crew (2)
Benefits
Hangar & Office Space
Hull Insurance
Liability Insurance
Modernisation
Navigation + Chart Service
Refurbishment
Computer Aided Maintenance Program
Weather Service
TOTAL COST PER YEAR

$200 - 235k
$155 - 180k
$150 - 170k
$260 - 280k
$145 - 165k
$135 - 185k
$60 - 110k
$12 - 25k
$40 - 50k
$14 - 16k
$190 - 290k
$13 - 15k
$700
$1'375 - 1'722m

Data provided for information only, actual costs specific to customer operations.

A320NEO VARIABLE COSTS

Maintenance
Parts (Airframe / Engine / APU)
Thrust Reverser Allowance
APU Allowance
Major Periodic Maintenance
Engine Reserves
Landing / Parking
Crew Expenses
Supplies / Catering
TOTAL COST PER HOUR

$380 - 850
$210 - 950
$20
$105 - 140
$900
$985 - 1100
$165 - 230
$330 - 360
$175 - 190
$6'745 - 8'215

A320NEO FIXED COSTS

Captain
First Officer
Second Officer
Cabin Crew (2)
Benefits
Hangar & Office Space
Hull Insurance
Liability Insurance
Modernisation
Navigation + Chart Service
Refurbishment
Computer Aided Maintenance Program
Weather Service
TOTAL COST PER YEAR

$200 - 235k
$155 - 180k
$150 - 170k
$260 - 280k
$145 - 165k
$135 - 185k
$60 - 110k
$12 - 25k
$40 - 50k
$14 - 16k
$190 - 290k
$13 - 15k
$700
$1'375 - 1'722m

Data provided for information only, actual costs specific to customer operations.

HOURLY VARIABLE COSTS

Maintenance
Parts (Airframe / Engine / APU)
Thrust Reverser Allowance
APU Allowance
Major Periodic Maintenance
Engine Reserves
Landing / Parking
Crew Expenses
Supplies / Catering
TOTAL COST PER HOUR

$380 - 850
$210 - 950
$20
$105 - 140
$900
$985 - 1100
$165 - 230
$330 - 360
$175 - 190
$7'070 - 8'540

ANNUAL FIXED COSTS

Captain
First Officer
Second Officer
Cabin Crew (2)
Benefits
Hangar & Office Space
Hull Insurance
Liability Insurance
Modernisation
Navigation + Chart Service
Refurbishment
Computer Aided Maintenance Program
Weather Service
TOTAL COST PER YEAR

$200 - 235k
$155 - 180k
$150 - 170k
$260 - 280k
$145 - 165k
$135 - 185k
$60 - 110k
$12 - 25k
$40 - 50k
$14 - 16k
$190 - 290k
$13 - 15k
$700
$1'375 - 1'722m

Data provided for information only, actual costs specific to customer operations.

AIRBUS ACJ320 PRICING

interior linings

Ceilings + Sidewalls
Entry Doors + Overwing Exits
Window Shades

$2.5 - 2.8m
$90 - 120k
$490 - 550k

cabin dividers

Bulkhead
Electrical Sliding Door
Mechanical Sliding Door
Pivot Door
Curtain

$125 - 185k
$75 - 95k
$45 - 65k
$20 - 25k
$5 - 10k

cabinetry

Storage Cabinets
Desks + Tables
Beds
Galleys
Shower
Vanity
Toilet

$175 - 295k
$125 - 295k
$80 - 125k
$495 - 945k
$295 - 445k
$275 - 550k
$165 - 220k

SEATING

Track + Swivel Seat
Divan
Ottoman

$95 - 195k
$355 - 495k
$25 - 65k

special cabinetRY

Passenger Transport Unit
Armory
Ballistic Safe
Kennel
Falcon Carrier

$495 - 695k
$195 - 225k
$45 - 95k
$25 - 45k
$30 - 45k

structural modifications

Upper Attachments
Side Attachments
Floor Attachments
Wire Routing Attachments
Floorboard Modifications

$495 - 695k
$195 - 245k
$300 - 395k
$175 - 220k
$225 - 295k

interior mockups

Production Samples
Cabin Volumetric Mockup
(1/5 Cabin)
Cabin Trim + Finish Mockup
(1/5 Cabin)
Cabin Volumetric Mockup
(Full Cabin)
Cabin Trim + Finish Mockup
(Full Cabin)

‍
$15k
$125 - 160k
‍
$325 - 415k
‍
$550 - 699k
‍
$1.5 - 1.9m
‍

FINISHING MATERIALS

Woods
Leathers
Flooring
Stones
Glass + Mirrors
Metal Plating

‍
$490 - 622k
$325 - 380k
$395 - 500k
$25 - 32k
$35 - 44k
$245 - 311k

RAW MATERIALS

Composite Panel + Tooling
Consumables

‍
$650 - 950k
$245 - 360k

AIR CONDITIONING

Air-conditioning Distribution
Ventilation Distribution
Air Cleaning System
Air Heating System
Humidification System

‍
$195 - 250k
$95 - 120k
$85 - 170k
$30 -45k
$340 - 360k

COMMUNICATIONS + connectivity

Voice + Data SATCOM System
Live TV SATCOM System
LAN + W/LAN System
Cabin Telephone System
Cabin Interphone System
Passenger Address System

‍
$995 - 1.25m
$895k - 1.15m
$240 - 345k
$180 - 225k
$30 - 45k
$20 - 25k

cabin power

Cabin Power Distribution
Utility Power System
Passenger Power System

‍
$550 - 750k
$135 - 155k
$150 - 175k

smoke detection

Smoke Detection System

$‍

indicating + recording systems

Security + Surveillance System
Anti Intrusion System
Door Warning System

$195 - 275k
$95 - 125k
$40 - 55k

cabin LIGHTING

Basic Lighting
Ambient + Accent Lighting
Decorative Lighting
Emergency Lighting System

‍
$275 - 325k
$125 - 195k
$125 - 145k
$135 - 175k

oxygen system

Chemical O2 System
Gaseous O2 System

‍
$75 - 95k
$600 - 780k

water / waste system

Water Storage + Distribution
Water Sterilization
Water Heaters
Grey Water Chamber
System
Air Assisted Drain
System

‍
$215 - 280k
$60k
$270 - 320k
$260k
‍
$225 - 295k
‍

cabin management

Cabin Management System
Cabin Controllers

‍
$265 - 295k
$125 - 220k

cabin entertainment

Audio + Video Sources
Audio + Video Ports
Video Displays
Cabin Audio
Passenger Audio

‍
$160- 280k
$12k
$495 - 625k
$350 - 475k
$75k - 120k

ACOUSTIC INSULATION

52 - 56dB
Soundproofing Package
48 - 52dB
Soundproofing Package
44 - 48dB
Soundproofing Package

‍
395 - 495k
‍
745 - 945k
‍
$1.1 - 1.4m
‍

certification

Certification Package
Compliance Testing + Analysis

‍
$500 - 650k
$210 - 295k

testing + delivery

Ground Test Programme
Flight Test Programme
Delivery + Ferry Flights

‍
$140 - 195k
$280 - 350k
$55 - 95k

continued airworthiness

Training + Documentation
Entry into Service support
Warranty Programme
Spare Parts Provisioning

‍
$350 - 450k
$25 - 45k
$295 - 995k
$445 - 695k

project management office

Project Management
Material Handling
Travel Expenses

‍
$695k
$995k
$350k

AIRBUS ACJ320 SPECIFICATIONS

A319NEO DIMENSIONS + PERFORMANCE

A319NEO CARGO CONFIGURATION

A320NEO DIMENSIONS + PERFORMANCE

A320NEO CARGO CONFIGURATION

A321NEO DIMENSIONS + PERFORMANCE

A321NEO CARGO CONFIGURATION

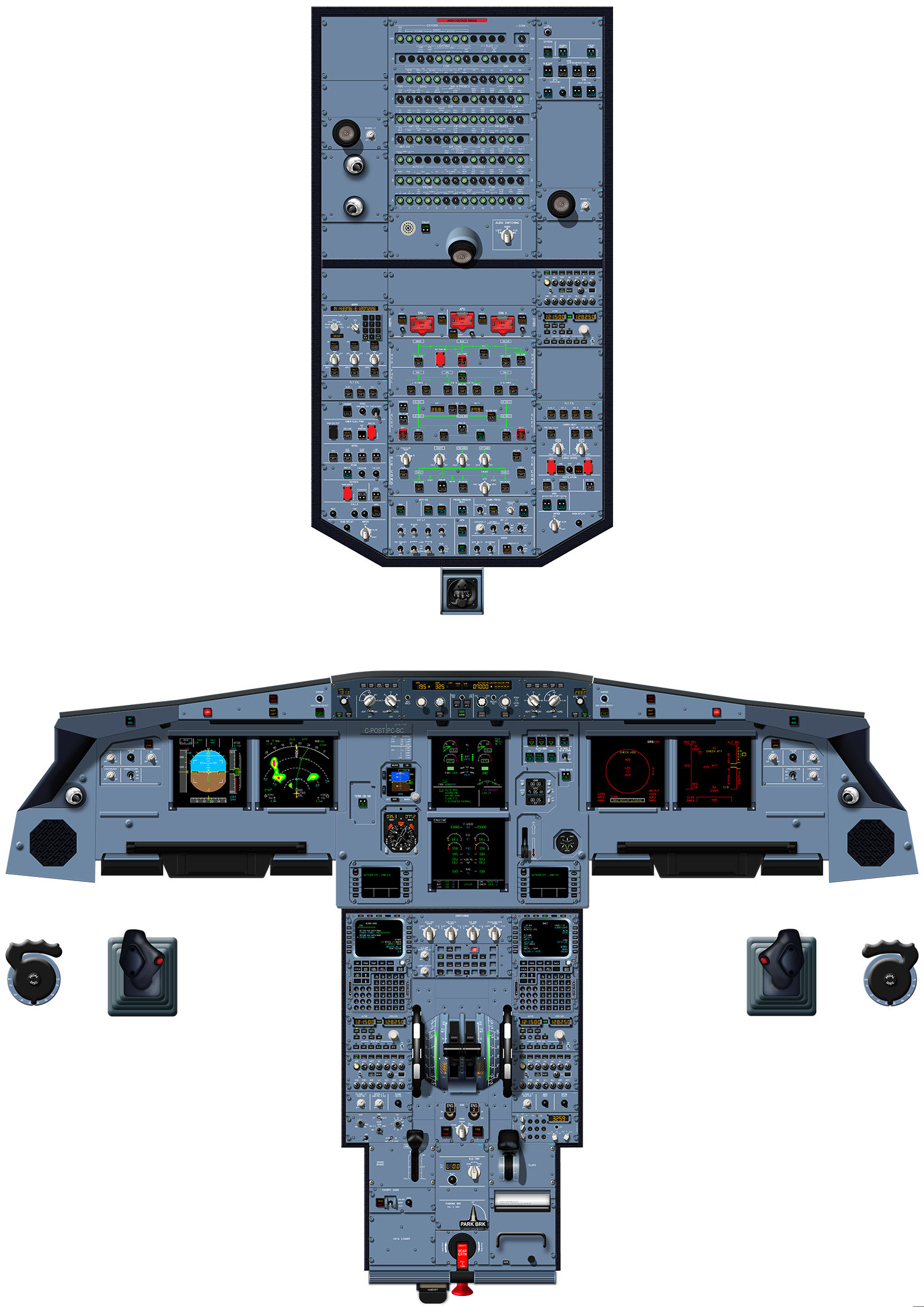

A320NEO flight deck layout

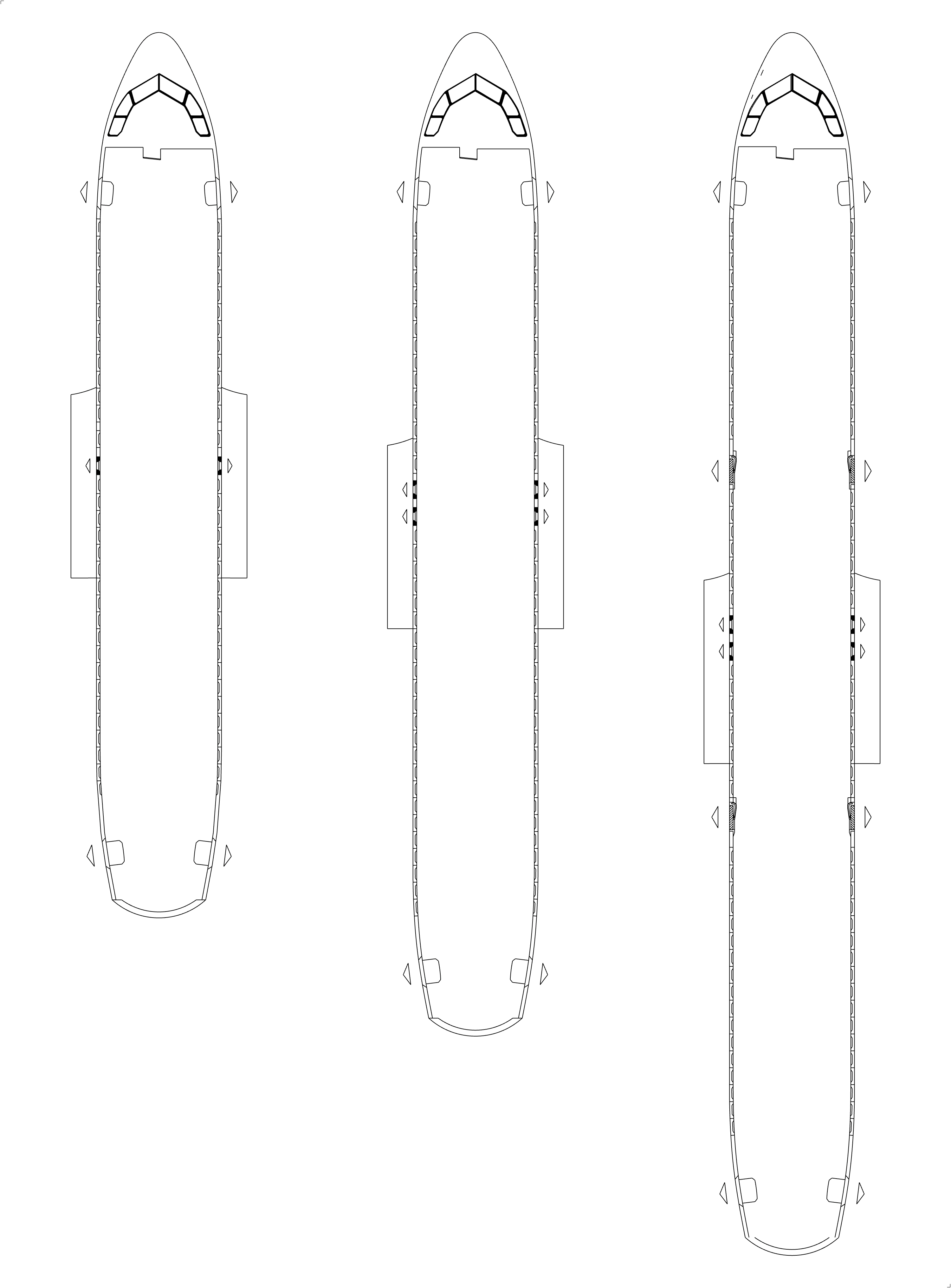

A320NEO CABIN layout

AIRBUS ACJ320 OPERATING COSTS

A319NEO VARIABLE COSTS

A319NEO FIXED COSTS

A320NEO VARIABLE COSTS

A320NEO FIXED COSTS

HOURLY VARIABLE COSTS

ANNUAL FIXED COSTS

AIRBUS ACJ320 PRICING

acj320 pricING

acj320 interior GUIDE pricE

interior linings

cabin dividers

cabinetry

SEATING

special cabinetRY

structural modifications

interior mockups

FINISHING MATERIALS

RAW MATERIALS

AIR CONDITIONING

COMMUNICATIONS + connectivity

cabin power

smoke detection

indicating + recording systems

cabin LIGHTING

oxygen system

water / waste system

cabin management

cabin entertainment

ACOUSTIC INSULATION

certification

testing + delivery

continued airworthiness

project management office
