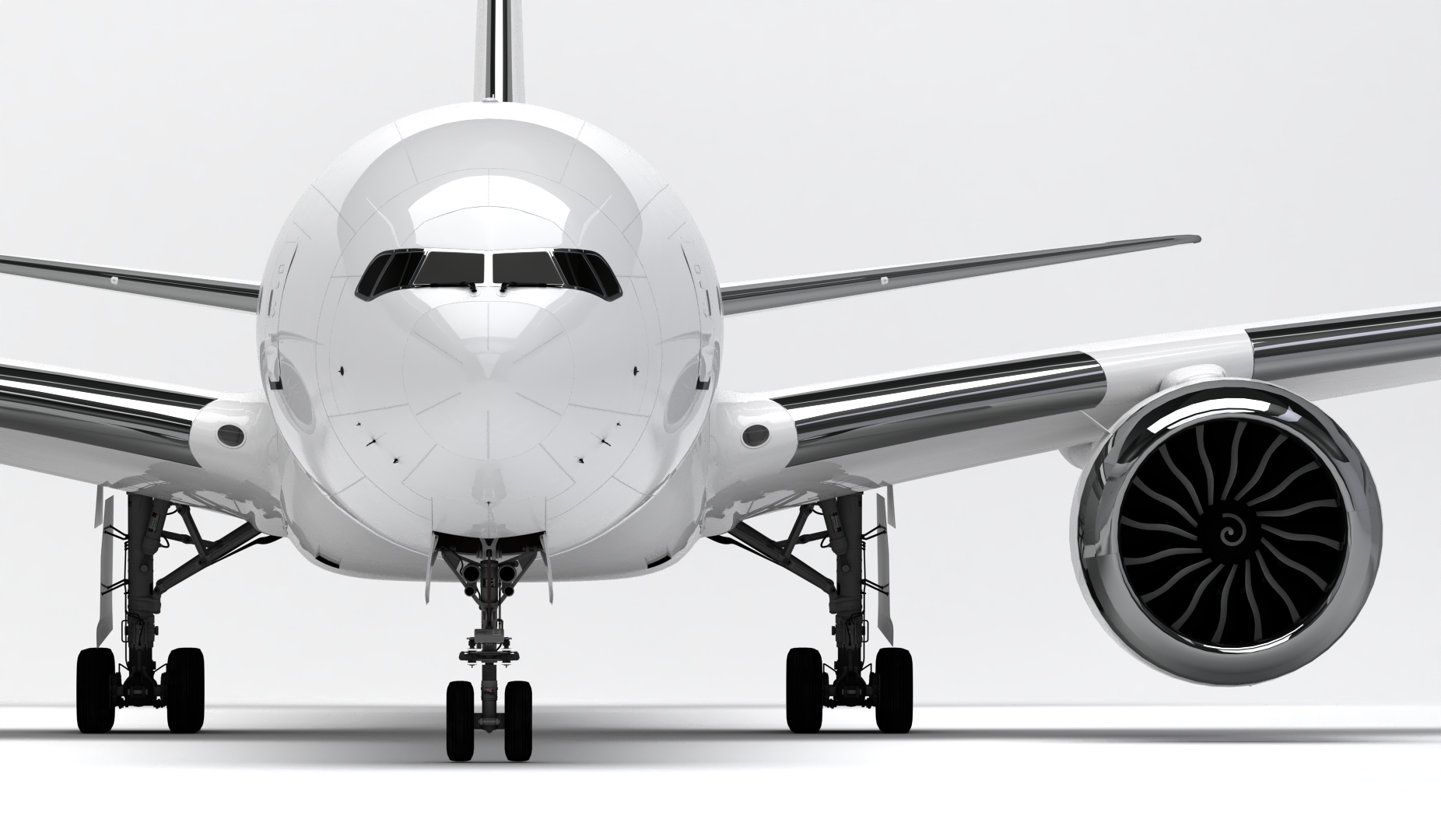

BOEING BUSINESS JET BBJ 777

BOEING BBJ 777 SPECIFICATIONS

B777-8
B777-9

B777-8 DIMENSIONS + PERFORMANCE DATA

  • Wing span
  • Length
  • Width
  • Height
  • Cabin length
  • Cabin width
  • Cabin height
  • Cabin Area
  • 71.8m
  • 69.8m
  • 6.2m
  • 19.5m
  • 54.4m
  • 6m
  • 2.5m
  • 302.5m
  • 235' 5"
  • 229'
  • 20' 4"
  • 64'
  • 178' 6"
  • 19' 7"
  • 8' 2"
  • 3256'
  • Take Off Weight
  • Landing Weight
  • Zero Fuel Weight
  • Empty Weight
  • Payload
  • Fuel Capacity
  • Fuel Burn
  • Range
  • Flight Time
  • Cruise Speed
  • Cruise Ceiling
  • Take-off Distance
  • Landing Distance
  • 351'500kg
  • 252'000kg
  • 239'000kg
  • 179'000kg
  • 60'000kg
  • 197'977l
  • 8262lp/h
  • 21'570km
  • 24:00hrs
  • 900km/h
  • 13'100m
  • 2'970m
  • 2'300m
  • 775'000lb
  • 557'000lb
  • 526'904lb
  • 394'627lb
  • 132'277lb
  • 52'300gal
  • 2'182gp/h
  • 11'645nm
  • 1440min
  • 559mp/h
  • 43'000ft
  • 9'750ft
  • 7'546ft
Data provided for information only, actual range and distances specific to final aircraft configuration and customer operations.

b777-x flight deck layout

BOEING BUSINESS JET BBJ 787 COCKPIT LAYOUT

B777-X CABIN layout

BOEING BUSINESS JET BBJ 777 X INTERIOR CABIN FLOORPLAN LAYOUT

B777-9 DIMENSIONS + PERFORMANCE DATA

  • Wing span
  • Length
  • Width
  • Height
  • Cabin length
  • Cabin width
  • Cabin height
  • Cabin Area
  • 71.8m
  • 76.7m
  • 6.2m
  • 19.5m
  • 61.3m
  • 6m
  • 2.5m
  • 342.7m
  • 235' 5"
  • 252'
  • 20' 4"
  • 64'
  • 201' 1"
  • 19' 7"
  • 8' 2"
  • 3689'
  • Take Off Weight
  • Landing Weight
  • Zero Fuel Weight
  • Empty Weight
  • Payload
  • Fuel Capacity
  • Fuel Burn
  • Range
  • Flight Time
  • Cruise Speed
  • Cruise Ceiling
  • Take Off Distance
  • Landing Distance
  • 351'500kg
  • 266'000kg
  • 254'000kg
  • 185'000kg
  • 69'000kg
  • 197'977l
  • 8'748lp/h
  • 20'370km
  • 22:40
  • 900km/h
  • 13'100m
  • 3'570m
  • 2'900m
  • 775'000lb
  • 587'000lb
  • 562'000lb
  • 407'855lb
  • 154'145lb
  • 52'300gal
  • 2'311gp/h
  • 11'000nm
  • 1400min
  • 559mp/h
  • 43'000ft
  • 11'700ft
  • 9'514ft
Data provided for information only, actual range and distances specific to aircraft configuration and customer operations.


BOEING BBJ 777 OPERATING COSTS

B777-8
B777-9

B777-8 VARIABLE COSTS

  • Maintenance
  • Parts (Airframe / Engine / APU)
  • Thrust Reverser Allowance
  • APU Allowance
  • Major Periodic Maintenance
  • Engine Reserves

  • Landing / Parking
  • Crew Expenses
  • Supplies / Catering

  • TOTAL COST PER HOUR
  • $1'445 - 3'230
  • $800 - 950
  • $75
  • $400 - 530
  • $3'420
  • $3'745 - 4'180
  • $630 - 875
  • $1'255 - 1'370
  • $665 - 725
  • $19'815 - 24'055

B777-8 FIXED COSTS

  • Captain (2)
  • First Officer (2)
  • Second Officer (2)
  • Cabin Crew (6)
  • Benefits

  • Hangar & Office Space

  • Hull Insurance
  • Liability Insurance

  • Modernisation

  • Navigation + Chart Service
  • Refurbishment
  • Computer Aided Maintenance Program
  • Weather Service

  • TOTAL COST PER YEAR
  • $400 - 470k
  • $310 - 360k
  • $300 - 340k
  • $780 - 840k
  • $540 - 600k
  • $470 - 510k
  • $210 - 230k
  • $40 - 45k
  • $140 - 155k
  • $14 - 16k
  • $665 - 725k
  • $13 - 15k
  • $700
  • $3'883 - 4'309m
Data provided for information only, actual costs specific to customer operations.

B777-9 VARIABLE COSTS

  • Fuel (2315 gallons per hour)

  • Maintenance
  • Parts (Airframe / Engine / APU)
  • Thrust Reverser Allowance
  • APU Allowance
  • Major Periodic Maintenance
  • Engine Reserves

  • Landing / Parking
  • Crew Expenses
  • Supplies / Catering

  • TOTAL COST PER HOUR
  • $11'575
  • $1'560 - 3'485
  • $860 - 3'895
  • $80
  • $430 - 575
  • $3'690
  • $4'040 - 4'510
  • $675 - 945
  • $1'355 - 1'475
  • $720 - 780
  • $22'590 - 29'635

B777-9 FIXED COSTS

  • Captain (2)
  • First Officer (2)
  • Second Officer (2)
  • Cabin Crew (6)
  • Benefits

  • Hangar & Office Space

  • Hull Insurance
  • Liability Insurance

  • Modernisation

  • Navigation + Chart Service
  • Refurbishment
  • Computer Aided Maintenance Program
  • Weather Service

  • TOTAL COST PER YEAR
  • $400 - 470k
  • $310 - 360k
  • $300 - 340k
  • $780 - 840k
  • $540 - 600k
  • $470 - 510k
  • $210 - 230k
  • $40 - 45k
  • $140 - 155k
  • $14 - 16k
  • $665 - 725k
  • $13 - 15k
  • $700
  • $3'883 - 4'309m
Data provided for information only, actual costs specific to customer operations.


BOEING BBJ777X PRICING

B777-x pricING


  • LIST PRICE
  • B777-8
  • $410M
  • B777-9
  • $442M

B777-x interior GUIDE pricE


  • VVIP
  • VIP
  • GOVERNMENT
  • EXECUTIVE
  • AIRLINER
  • B777-8
  • $126M
  • $101M
  • $75M
  • $51M
  • $10M
  • B777-9
  • $136M
  • $110M
  • $81M
  • $55M
  • $11M
Boeing Business Jet interior price and schedule guide
Data provided for information only, actual pricing and schedule specific to aircraft and cabin configuration.

CABIN
interior
CABIN
systems
PROJECT
execution

interior linings


  • Ceilings + Sidewalls
  • Entry Doors + Overwing Exits
  • Window Shades
  • $4.1 - 4.9m
  • $120k
  • $1.6 - 1.9m

cabin dividers


  • Bulkhead
  • Electrical Sliding Door
  • Mechanical Sliding Door
  • Pivot Door
  • Curtain
  • $245 - 315k
  • $75 - 95k
  • $45 - 65k
  • $20 - 25k
  • $5 - 10k

cabinetry


  • Storage Cabinets
  • Desks + Tables
  • Beds
  • Galleys
  • Shower
  • Vanity
  • Toilet
  • $175 - 295k
  • $125 - 295k
  • $80 - 125k
  • $495 - 945k
  • $295 - 445k
  • $275 - 550k
  • $165 - 220k

SEATING


  • Track + Swivel Seat
  • Divan
  • Ottoman
  • $95 - 195k
  • $355 - 495k
  • $25 - 65k

special cabinetRY


  • Passenger Transport Unit
  • Armory
  • Ballistic Safe
  • Kennel
  • Falcon Carrier
  • $495 - 695k
  • $195 - 225k
  • $45 - 95k
  • $25 - 45k
  • $30 - 45k

structural modifications


  • Upper Attachments
  • Side Attachments
  • Floor Attachments
  • Wire Routing Attachments
  • Floorboard Modifications
  • $1.6 - 2.1m
  • $650 - 800k
  • $1 - 1.2m
  • $560 - 700k
  • $750 - 900k

interior mockups



  • Production Samples
  • Cabin Volumetric Mockup
    (1/5 Cabin)
  • Cabin Trim + Finish Mockup
    (1/5 Cabin)
  • Cabin Volumetric Mockup
    (Full Cabin)
  • Cabin Trim + Finish Mockup
    (Full Cabin)

  • $15k
  • $125 - 160k
  • $325 - 415k
  • $550 - 699k
  • $1.5 - 1.9m

FINISHING MATERIALS



  • Woods
  • Leathers + Hides
  • Flooring
  • Stones
  • Glass + Mirrors
  • Metal Plating

  • $1.5 - 1.8m
  • $1.1 - 1.4m
  • $875 - 1.1m
  • $75 - 90k
  • $125 - 145k
  • $495 - 595k

RAW MATERIALS



  • Composite Panel + Tooling
  • Consumables

  • $1.95 - 2.25m
  • $825 - 995k

AIR CONDITIONING



  • Air-conditioning Distribution
  • Ventilation Distribution
  • Air Cleaning System
  • Air Heating System
  • Humidification System

  • $660 - 800k
  • $410 - 433k
  • $245 - 265k
  • $110 - 130k
  • $1 - 1.3m

COMMUNICATIONS + connectivity



  • Voice + Data SATCOM System
  • Live TV SATCOM System
  • LAN + W/LAN System
  • Cabin Telephone System
  • Cabin Interphone System
  • Passenger Address System

  • $995 - 1.25m
  • $895k - 1.15m
  • $240 - 345k
  • $180 - 225k
  • $30 - 45k
  • $45 - 65k

cabin power



  • Cabin Power Distribution
  • Utility Power System
  • Passenger Power System

  • $1.9 - 2.6m
  • $325 - 350k
  • $225 - 265k

smoke detection


  • Smoke Detection System
  • $‍

indicating + recording systems


  • Security + Surveillance System
  • Anti Intrusion System
  • Door Warning System
  • $195 - 275k
  • $95 - 125k
  • $60 - 85k

cabin LIGHTING



  • Basic Lighting
  • Ambient + Accent Lighting
  • Decorative Lighting
  • Emergency Lighting

  • $630 - 760k
  • $735 - 795k
  • $350 - 500k
  • $420 - 475k

oxygen system



  • Chemical O2 System
  • Gaseous O2 System

  • $250 - 275k
  • $1.9 - 2.2m

water / waste system



  • Water Storage + Distribution
  • Water Sterilization
  • Water Heating
  • Grey Water Chamber
    System
  • Air Assisted Drain
    System

  • $730 - 880k
  • $120k
  • $600 - 750k
  • $650k
  • $765 - 920k

cabin management



  • Cabin Management System
  • Cabin Controllers

  • $550 - 625k
  • $450 - 580k

cabin entertainment



  • Audio + Video Sources
  • Audio + Video Ports
  • Video Displays
  • Cabin Audio
  • Passenger Audio

  • $160- 280k
  • $24k
  • $700 - 950k
  • $675 - 925k
  • $260k - 320k

ACOUSTIC INSULATION



  • 52 - 56dB
    Soundproofing Package
  • 48 - 52dB
    Soundproofing Package
  • 44 - 48dB
    Soundproofing Package

  • $850 - 1m
  • $1.6 - 2m
  • $3.3 - 4m

certification



  • Certification Package
  • Compliance Testing + Analysis

  • $1.6 - 2.1m
  • $750 - 875k

testing + delivery



  • Ground Test Programme
  • Flight Test Programme
  • Delivery + Ferry Flights

  • $140 - 195k
  • $280 - 315k
  • $55 - 95k

continued airworthiness



  • Training + Documentation
  • Entry into Service support
  • Warranty Programme
  • Spare Parts Provisioning

  • $1.2 - 1.5m
  • $25 - 45k
  • $295 - 995k
  • $1.6 - 2.1m

project management office



  • Project Management
  • Material Handling
  • Travel Expenses

  • $1.6m
  • $2.1m
  • $350k
